Reverse-Engineering an LCD Display




The first steps of reverse engineering

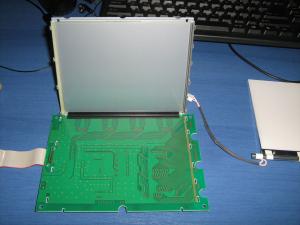

The very first step, is to identify what i was looking for: Looking to see how it works? No. See how the chips are interconnected? No. What i am looking for, is to see how to interface this module with the 18-pin ribbon cable that it carries. So, first of all, i need to identify what each cable does, or at least, where it is connected. But first, i need to see what help i can get more. So, i googled for the chips that are vidible on the PCB. There are actually 4 different chips:


  • 73101YXA
  • C324G
  • LC79401
  • LC79431

  • I managed to find the datasheets for two of them, and it proved that it was just enough:

     LC79431 datasheet

     LC79401 datasheet

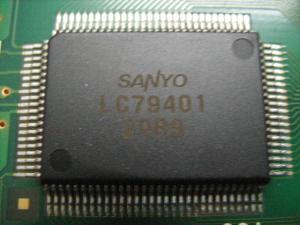

    These two chips are responsible for the horizontal and vertical scanlines, which is obvious if you see the arrangement on the PCB. I also removed the LCD from its PCB to see what is hidden in between, but i found only PCB traces and vias.

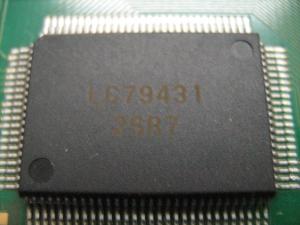

    This is one of the 4 chips responsible for the horizontal data This is one of the 3 chips responsible for the vertical scan lines Between the LCD and the PCB there is only the backlit





    Now what?

    Now that i have some datasheet in my armory, i can start identifying what each pin of the 18-pins connector does. First of all, i had to find the VDD and VSS pins. There should be some! So, i began from the VSS and VDD signals from one of the chips that i had the datasheet. Within half an hour, using of course my magnifier glass (i am getting old), i had some first results:


  • Pin 4: GND
  • Pin 5: VDD
  • Pin 6: GND
  • Pin 9: GND
  • Pin 11: GND
  • Pin 13: GND
  • Pin 15: GND

  • Do you see something strange? There is one VDD and plenty GND (VSS) signals. Why? I did not know by i could suppose that it is used to avoid inter-talking between data lines. This is a very usual technique. If you have ribbon cables and there are data lines with high speed data transmition, then you put between them grounding wires to avoid inter-talking between them. Anyway. There are some more pins to identify. Slowly and carefully i followed all the lines and wrote down where each one goes. Here are all the pins:


    Pin #Goes toPin description (datasheet)
    1IC7 - PIN 82DIO80
    2IC5-7 PIN 96Bidirectional shift register's shift clock (trigger in on trailing edge)
    3IC1-4 PIN 99CP display data acquisition clock (falling edge)
    4GNDGND
    5VDDVDD
    6GNDGND
    7IC1-4 PIN 85 | IC5-7 PIN 84VEE
    8IC1-4 PIN 89 | IC5-7 PIN 89[-]DISPLAY OFF
    9GNDGND
    10IC1-4 PIN 98D1
    11GNDGND
    12IC1-4 PIN 97D2
    13GNDGND
    14IC1-4 PIN 96D3
    15GNDGND
    16IC1-4 PIN 95D4

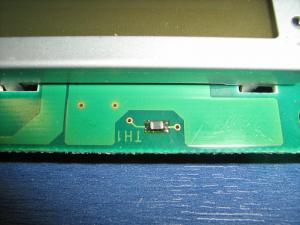

    LCDs are sensitive in temperature changes, so it is normal to find a thermistor nearby for temperature compensation.

    I was right. between the GND lines there are data lines, D1 through D4.

    Also, there are 2 more pins which i did not mention so far, pin 17 and 18. I followed these lines, and they both ended up on the leads of a tiny SMD part. Nothing else. The part had the ID "TH1"... Does this means THermistor? LCDs are sensitive in temperature changes regarding their contrast, so it is normal to find a thermistor near by for contrast temperature compensation. I put my voltmeter and got a resistance measurements. Then i touched this smd part and the resistance began to decrease. I let it again and the resistance began to increase... It is clearly a NTC thermistor for temperature compensation. That was easy.



    Lets give some POWER!

    I checked and double checked the lines with the voltmeter to make sure that i did not mark as "GND" a "VDD" line, because this would be a mistake that i could do only once... I need to make this LCD work, and i only have one in stock. That makes the challenge harder. When i was sure, i took the ribbon cable out and cut one end. Then i soldered my 0.1'' 18-pins male connector, to plug it in on a breadboard. I connected all the GND wires to the 0 volts, and the VDD to 5 volts. Of course, i previously had read carefully both datasheet. Some chips operate at lower voltages! I hate the smell of a burning chip, especially when there is no re-try. Trial and error does not apply here.

    I decided to put PIN 1 on the oscilloscope (to see what this DIO80 is). I connected Pin 2 and 3 to my function generator. Not directly of-course! Through a transistor to have absolute control of current and voltage. Pin 8 obviousely had to be connected to +5 volts (according to the description). As for the 4 data lines, i pulled half of them down and half of them up through resistors. POWER UP!!!

    Nothing, nothing at all! I was almost sure that this would happen, because i had Pin 7 on the air. But what is this "VEE"? In the datasheets it says that this is the VDD-VEE voltage difference for power supply of the LCD block... Did not make any sense. So, armed with courage i connected it to 5 volts through a resistor... nothing... -5.. nothing. 5 without a resistor... -5 directly... nothing at all.

    Then something happened. With my finger, i touched the wire from Pin 1 (that was connected to the oscilloscope). The LCD blinked for an instance! ITS ALIVE! How stupid of me. This pin was an input and NOT an output. I connected it to +5 volts (through a resistor). I also put pin 7 to ground. And guess what!!!

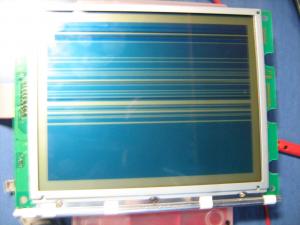

    This is the very first screen that i got from this LCD. Nothing fancy now that i look it again, but for a moment, i looked like the lost masterpiece of Michelangelo. Obviously, this first pin was the key to start sending scan lines. But hey, if i have it all time on +5, what are these random gaps? Well, when i opened the LCD, i must have moved the connector a little bit and it lost contact. So i re-opened it and re-closed it, this time more carefully. Then, i got a completely black screen.

    But hey, again. If i give 1-0-1-0 to data, why i get a black screen? What is the meaning of these data-lines anyway? A more closely look on the LCD revealed the final secret. Half of the lines were black, and the other half lines were very dark gray. This is obviously the result of a bad contrast, isn't it? Is there a pin that could adjust the contrast? If you thought of this damn pin 7, then you thought correct. I put a 5K potentiometer between this pin and ground, and here are the results:





    That was good but too easy. The next part is to program a PIC and give some life to this sweet LCD. Did i mention that this is 320 by 220 pixels? The external dimensions are 15.5 x 12.5cm, and the visible area is 13.5 by 10.5 cm. I suppose that this is a 6.5'' B/W LCD with backlit. I have not work yet with this backlit. I will later on.
