Keyboard-Mouse Smartcard USB Lock with PICAuthor
Giorgos Lazaridis
June 6, 2012

In this project i explain how i made my USB lock controlled with a smartcard. I used a PIC microcontroller to mak a smartcard reader board. The board has several functions to save up to 4 different cards. The cards that i use are simple expired telephone cards. When the correct card is inserted to the slot, the 4 USB ports are enabled, otherwise the USB ports are disabled. This way, i can lock the mouse and keyboard of the computer, as well as any other external device.

The smartcard reader is connected with a USB switch that i made with an ADG714 analog bidirectional switch. It also has a relay to control the power supply of the USB ports. This is the final look of the smartcard slot:







A small bi-color LED indicates if the correct card is inserted to the slot, or if a wrong card is inserted:

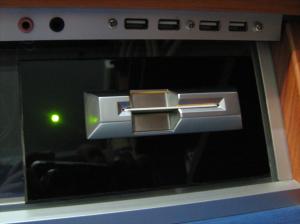

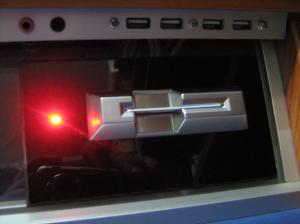

Correct card Wrong card




Here is a video in which i present this project




And here is a video in which i explain how the smartcard reader works:





Complete documentation with schematics and PCB designs as well as PIC software can be found in the worklog section


   Continue reading. Click here to view the worklog.
