|This project is not completed yet - Last update: January 12, 2014|
PAGE 4 of 4
Fixing the heat gun on the carriage
Its time to mount the payload, the heat gun. As expected, the heat gun will be placed in the semi-cycle cut of the carriage. But first i need something to hold the gun:
|I piece of aluminum will do the work
||First i bent the aluminum to the shape of the heat gun handle
||This is what i want, an Omega shape
||Then i trimmed the edges, drilled for the screws and routed the counter-sinks.
Here is how it looks now:

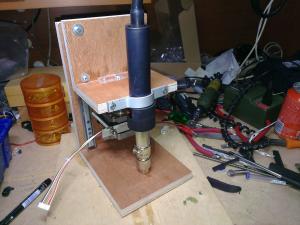

|Carriage is Down

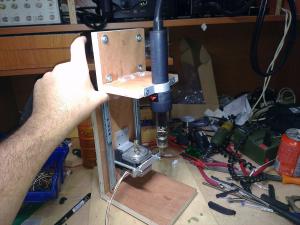

||Carriage is Up
A much better coupling for the motor and rod
In the previous pages when i was describing how the threaded rod is coupled onto the motor, i said that i decided to use a much better method than the metallic part of a klemens. This coupling had the shaft completely misaligned with the motor shaft. This caused extreme vibrations and extreme torque on the motor, causing the motor to move like it was dancing. It required a lot of work to "somewhat" align the shafts. So i decided to change this lousy coupling.
It just so happens that the motor and the threaded rod has almost the same diameter. This helps a lot. What i need is something to couple the two 6mm shafts together, and that something is an 8mm air hose:
|The motor shaft and the threaded rod have almost the same diameter, 6mm
||This is the coupling, an 8mm air hose. The internal diameter is roughly 6mm!
||I only need one short piece of this tube
And here it is!
It works extremely well! I totally recommend this method if speed and torque permits.
Stay tuned. I will upload more worklog soon!
