|This project is not completed yet - Last update: January 12, 2014|
PAGE 2 of 4
Fixing the Guides onto the Back Support
|Each guide will be fixed 8mm from the edge of the 130x220 piece, so i use an 8mm plexiglass as a spacer
||I marked the drills to be. I will use M4 screw and nuts
||Also, i will use these M5 nuts as spacers
||This is how the nuts are used as spacers.

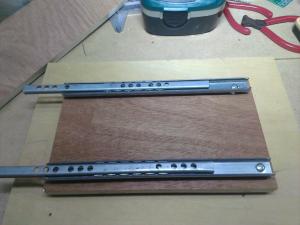

Finally, i drilled and screwed both guides:
Fixing the Carriage on the Guides
Its just about time to fix the carriage of the hot-air gun on the base. First i had to do some preparations:
|First i filed 2 parallel sides of the M4 nuts to make them smaller...
||..so that they can fit inside the rail
||And i also had to trim the screws a bit
||Finally, i had to make some extra holes on the rails of the guides for the carriage
|I marked and drilled the carriage.

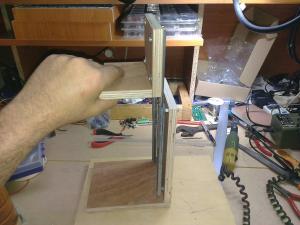

||And then i used the bits and nuts to fix it on the rails

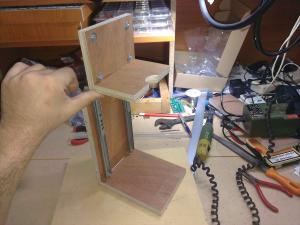

||Works really nice
||A shot from the back side
Finishing the Frame

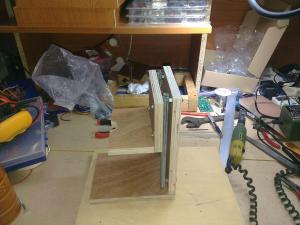

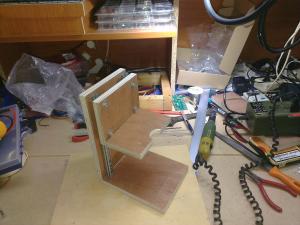

Well, there is only one thing left to do, to screw the back support to the base. The base will be the 130x170 piece. No need to go into details, typical drills and glue. Here is the frame finished:
Ok, so far so good.
I will upload the rest of the make pretty shortly. The device is currently almost ready working like charm on my workbench. I used a precision and quite powerful (actually overpowered) stepper motor which drives a threaded M6x1mm rod. There is an M6 nut on the carriage to complete the driving mechanism. It works much better than i expected. So stay tuned...
Go ahead and read the third page by clicking on this link.
