15 February 2010
Author: Giorgos Lazaridis
PC Power Connectors




Intro

Some call this "junk closet". But frankly, i call it "Museum".

All devices needs of power to operate. The power to computer devices, is delivered through cables that are connected using the "Molex" connectors. Searching inside my museum, i found almost all these connectors to demonstrate.




A few historical facts

What is a Molex connector? Or better, what is a "Molex"? The Molex is a kind of plastic that was invented by a company named "Molex" in the 1930s. The material was developed by Frederick August Krehbiel, and in 1938 he founded the Molex Products Company. The company produced flower pots, toys, salt tablet dispensers, clock cases, and insulators out of this material. In 1953, Molex introduced the first connector, called "686 Plug".

Today, computers have numerous molex connectors inside. This article will line up these connectors and the pinout configuration shall be given, for those who just want to know, or those who thinks of moding the case a little bit.



Motherboard power supply
PC 6+6 pins power supply

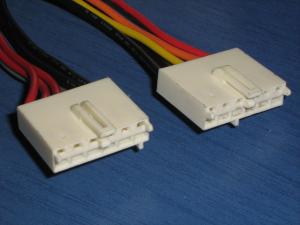

The 6+6 power supply (1981). "Black with black" or a toasted motherboard

In 1981, the new PC was introduced. It required 2 cables, 6 pins each for the power supply. Although the connectors were polarized, the keys could be easily misplaced with a little force. Thus, various expressions were "invented" to avoid a smoking (and quite expensive) motherboard, such as "black with black", that meant that the plugs should be connected in a way that the black wires at their sides, should be side by side.


Part Numbers:
CableMotherboardTerminalsMax current
(per pin)
Molex 90331 Molex 15-48-0106 Molex 08-50-0276 5 A

Pinouts:
#ColorDescription
1BLUEPOWER OK
2RED+5V (or connector key)
3ORANGE+12V
4YELLOW-12V
5BLACKGROUND
6BLACKGROUND
7BLACKGROUND
8BLACKGROUND
9GREY (WHITE)-5V
10RED+5V
11RED+5V
12RED+5V



ATX 20 pins power supply

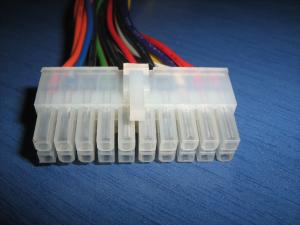

The 20pins ATX power supply connector (1992) had better keys to polarize and 3 brand new features!

During the year 1995, the new ATX standard was introduced with 20 pins connectors and 3 brand new lines: the 3.3 volts power supply cable, the sleep power supply that has +5 volts even when the PC was off, and the Power On cable that can turn on the power supply from a motherboard command and not only from the hardware switch. The keys of this connector were re-designed and thus it could not be entered the wrong way.


Part Numbers:
CableMotherboardTerminalsMax current
(per pin)
Molex 39-01-2200 Molex 39-28-1203 Molex 39-00-0168
Molex 44476-1111
6 A

Pinouts:
#ColorDescription
1ORANGE3.3V
2ORANGE3.3V
3BLACKGROUND
4RED+5V
5BLACKGROUND
6RED+5V
7BLACKGROUND
8GREYPOWER OK
9PURPLEVSB*
10YELLOW+12V

#ColorDescription
11ORANGE+3.3V
12BLUE-12V
13BLACKGROUND
14GREENPOWER ON
15BLACKGROUND
16BLACKGROUND
17BLACKGROUND
18WHITE-5V
19RED+5V
20RED+5V
*VSB = Voltage StandBy. +5V could be delivered to the motherboard even when the computer was turned off




ATX 24 pins power supply

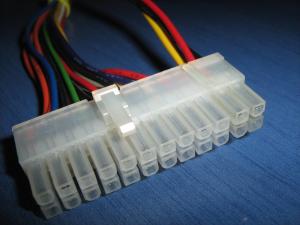

The new ATX 24 pin connector, has all the features of the old 20-pin, plus a ground,a +5, a +12 and a +3.3 volts supply line.

During the 20-24 change era, it was very common the power supplies to have a 20 pins connector and a 4 pins connector together....

...and these connectors could be jointed into one 24-pins connector!

Until now, the motherboard was powered with an 20 pins connector. If more power was required, most power supplies had an extra 4-pins connector for this. So, these two connectors jointed together to perform the new 24-pins connector. It has all the features that the old 20-pins had, plus a ground, a +5V, a +12V and a +3.3V power supply line. It is physically polarized to avoid errors in connection.



Part Numbers:
CableMotherboardTerminalsMax current
(per pin)
Molex 39-01-2240 Molex 39-28-1243 Molex 39-00-0168
Molex 44476-1111
6 A


Pinouts:
#ColorDescription
1ORANGE3.3V
2ORANGE3.3V
3BLACKGROUND
4RED+5V
5BLACKGROUND
6RED+5V
7BLACKGROUND
8GREYPOWER OK
9PURPLEVSB*
10YELLOW+12V
11YELLOW+12V
12ORANGE3.3V
#ColorDescription
13ORANGE+3.3V
14BLUE-12V
15BLACKGROUND
16GREENPOWER ON
17BLACKGROUND
18BLACKGROUND
19BLACKGROUND
20WHITE-5V
21RED+5V
22RED+5V
23RED+5V
24BLACKGROUND
*VSB = Voltage StandBy. +5V could be delivered to the motherboard even when the computer was turned off
