In the previous section we learned how can someone analyze a transistor circuit. But if someone wants to design an amplifier, the methodology is different. In this section we will discuss the design methodology for the three different transistor connections.
Common Base Transistor Design Methodology

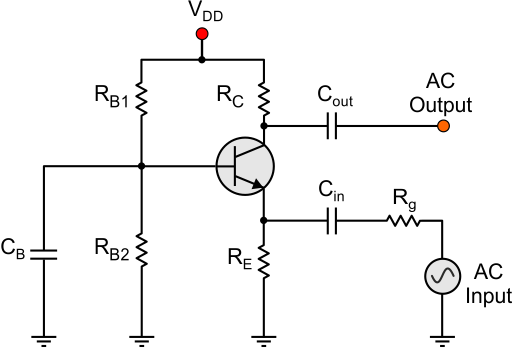

A common base amplifier is usually used as an input amplification stage for high frequency applications (small signal amplifier). We will not discuss much about this type of connection, since it is very rarely used. Here is a typical Common Base transistor amplifier schematic with an NPN transistor:
There will be a lot of mathematical functions and equations that have to be solved to analyze the circuit, and therefore i made an on-line calculator. You can use it to speed up your work. Here is the link:
The resistor Rg is the resistance of the AC signal generator. The amplifier is biased with Voltage Divider (R_{B1}-R_{B2}). The output is taken from the collector and the input signal is applied at the emitter.

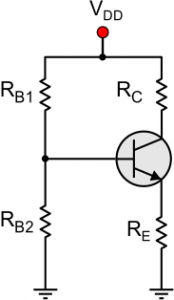

The designer must know the input signal size (amplitude and frequency range) and the required amplification factor. Also, the designer must know the DC voltage that will be used for the transistor bias (V_{DD}). A common base amplifier has no current amplification, therefore we only need to calculate the voltage amplification. The design can begin with the DC equivalent:
First thing we can define with an educated guess is the R_{E} resistor. We know that the AC input must be able to provide enough current for the emitter and the collector circuit. Therefore, we want to maintain the emitter current as low as possible. We can safely choose a large resistor such as 10 Kohms for R_{E}.
Usually, we place the Q point in the middle of V_{CE}. This means that:
V_{CEQ} = V_{DD} / 2
It can be proved that the voltage gain is calculate from this formula:
Av = R_{C} / r_{i}
To calculate r_{i} we must first calculate the emitter resistor r'_{e}. But we cannot calculate r'_{e} since we do not know the emitter current. So we must find a way to calculate the emitter voltage first. Let's remember the formula for the internal emitter resistor:
r'_{e} = 25mV / I_{C} = 25mV / I_{E}
We replace this formula to the gain amplification formula:
Av = R_{C} / ( 25mV / I_{E} ) => Av = I_{E} x R_{C} / 25mV = I_{C} x R_{C} / 25mV = V_{C} / 25mV => V_{C} = Av x 25mV
From the above formula we can directly calculate the collector voltage V_{C}. Now we can use the Kirchhoff's law to calculate the emitter voltage:
From the voltage divider formula, we can now calculate the resistor ratio needed to get this voltage:
V_{B} = V_{DD} x R_{B2} / ( R_{B1} + R_{B2} )
Let's assume that we choose to design a firm voltage divider. This means that the current through the voltage divider (I_{VD}) must be at least 10 times greater than the base current. In other words:
I_{VD} = 10 x I_{B} => Rvd = 0.1 x Î² x R_{E} => R_{B1} + R_{B2} = 0.1 x Î² x R_{E}
